43 inch HD Digital Touch Kiosk

Product Type：V431YCL
Brightness：300 cd/m²
Contrast：1500:1
Respectively Rate：1920*1080

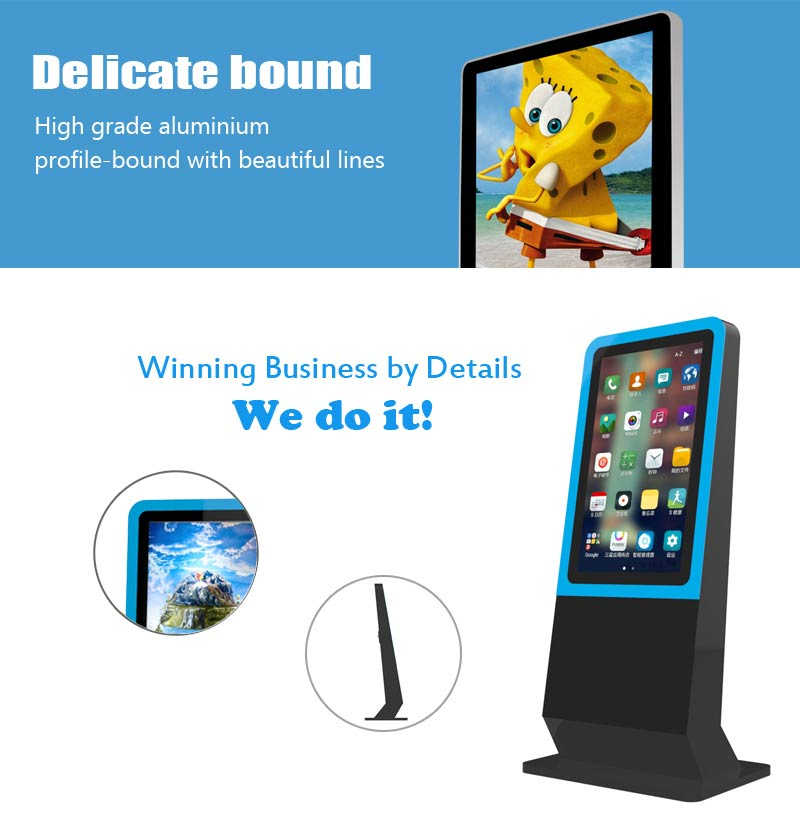

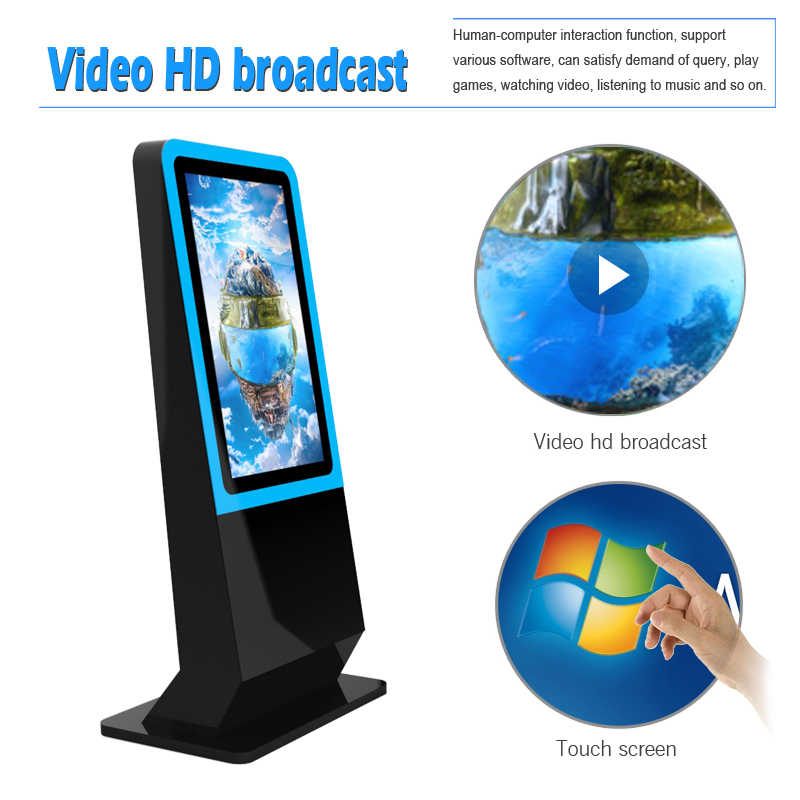

43 inch HD Digital Touch Kiosk
Request a quote

◆Intelligent Terminal System Optional, Function Customization
◆ System to support a cloud platform management mode
◆ Support both Chinese and English etc kinds language version
◆ Open all series feature API development platform
◆ Terminal intelligent networking, exempted from registration
◆ System management side support self-built server system
◆ Installation is convenient remote maintenance and management and unload
◆ Support for massive number of terminal, server can be a smooth upgrade
◆ increase the external device, such as touch screen, camera, printer and other intelligent integrated applications
◆ Support wired LAN, Internet, WIFI, extensible 3 G, 4 G networks

Category	Description	Specification
LCD Panel	Name Type	43'' HD LCD Digital Touch Kiosk
	Model Number	V431YCL
	Panel size	43''inch
	Display Area	941.184(H) × 529.416(V) mm
	Aspect Ratio	16 : 9
	LCD Type	TFT-LCD
	Max Resolution	1920 × 1080
	Display color	16.7M
	Brightness	300 cd/m²
	Contrast ratio	1500 : 1
	Viewing angle (up/down/left/right)	89°/89°/89°/89°
	Response Time	8ms
	Field Frequency	50Hz、60Hz、70Hz
	Color system	PAL/NTSC/Auto Identification
	OSD Language	Chinese/English

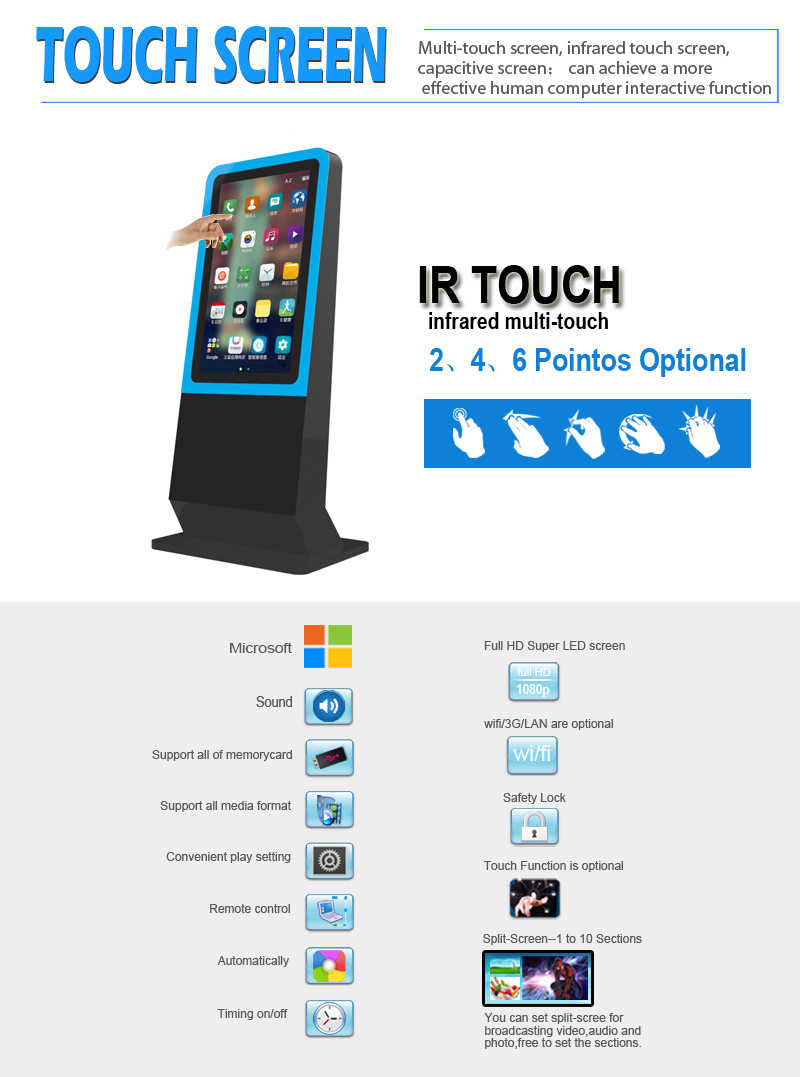

Touch screen parameter	Touch Style	Infrared Touch
	Touch Resolution	32767*32767
	Touch points	6 points
	The glass transmittance	>88%（Higher transmittance depends on the glass surface treatment technology, eg.AR/AG）/>88%
	Response speed	<15ms
	Accuracy of touch	More than 90% of the touch area ±2mm
	Touch ways	Fingers, touch pen and other opaque objects
	Output format	The coordinate output
	Clicks time	Unlimited
	The smallest touch size	5mm
	Light resistance	Yes available
	Touch Interfaces	USB
	Operating temperature &Humidity	-10℃ ~ +50℃，≤85%RH
	Storage temperature &Humidity	-20℃ ~ +60℃，≤90%RH
Computer configuration	CPU	I3
	DDR	4G DDR3
	HDD	500G
	WIFI	Optional
	Computer Power	19V Power Adapter

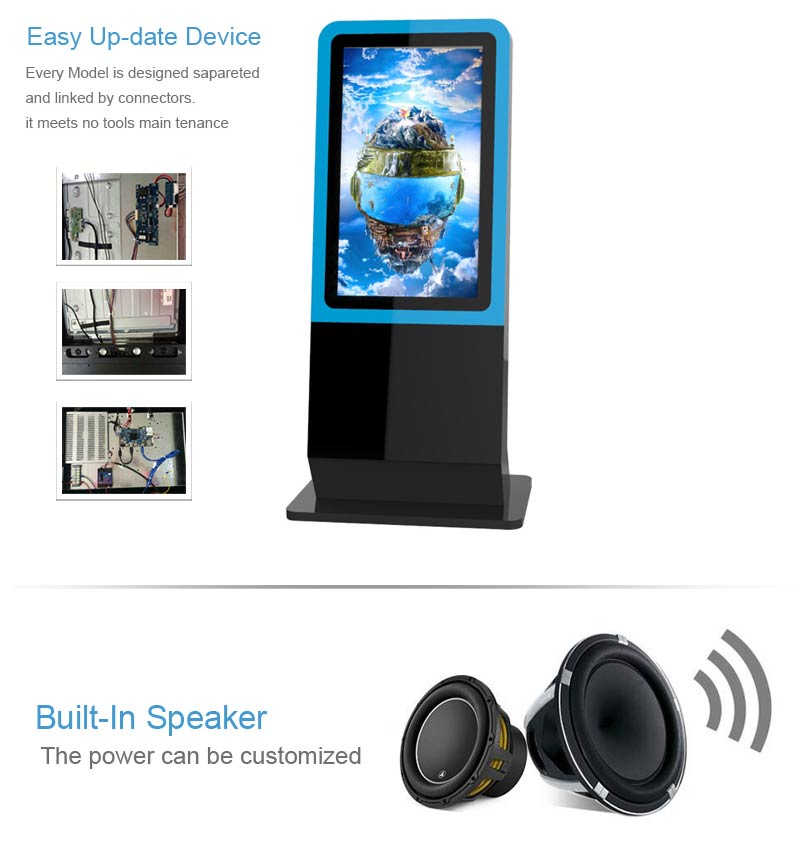

Power	Audio system	Built-in 8 Ω 10 w * 2 speakers
	Power	AC100V～240V，50/60Hz
	The maximum power loss	≦300W
	Standby power loss	＜1W
Environment	Operating temperature	0℃~50℃
Environment	Storage temperature	-20℃~60℃

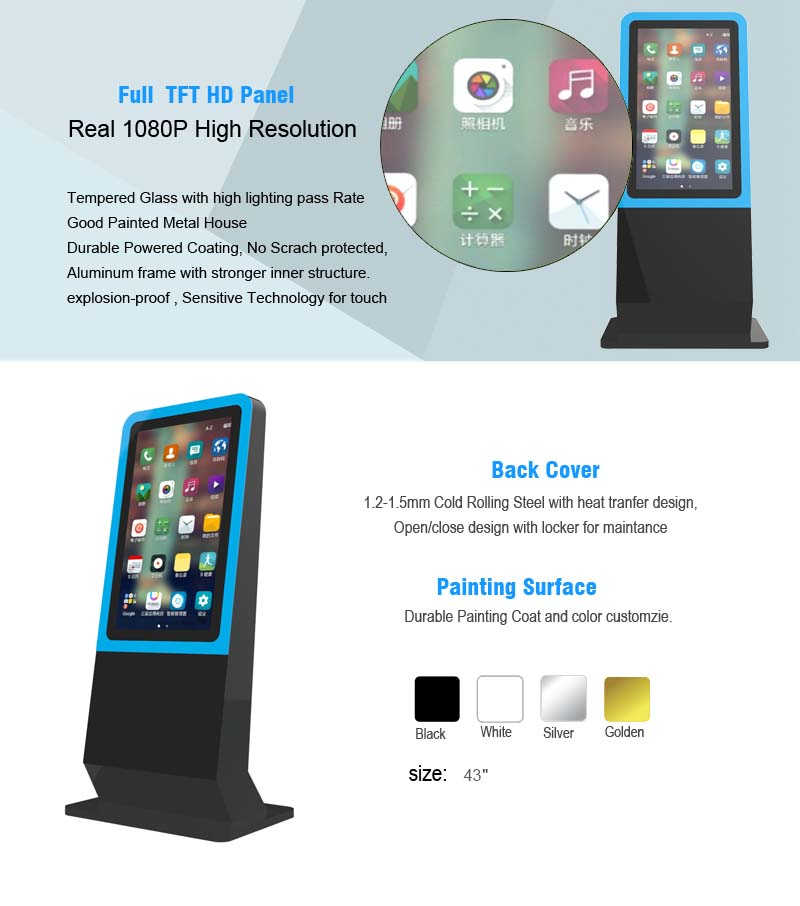

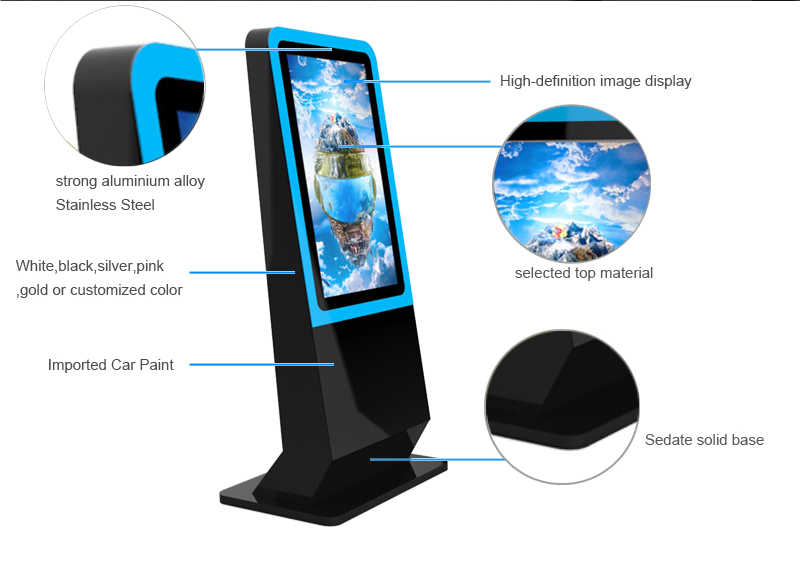

Instructions	Frame material	Metal case
	Installation type	Floor standing
	Range of application	Indoor

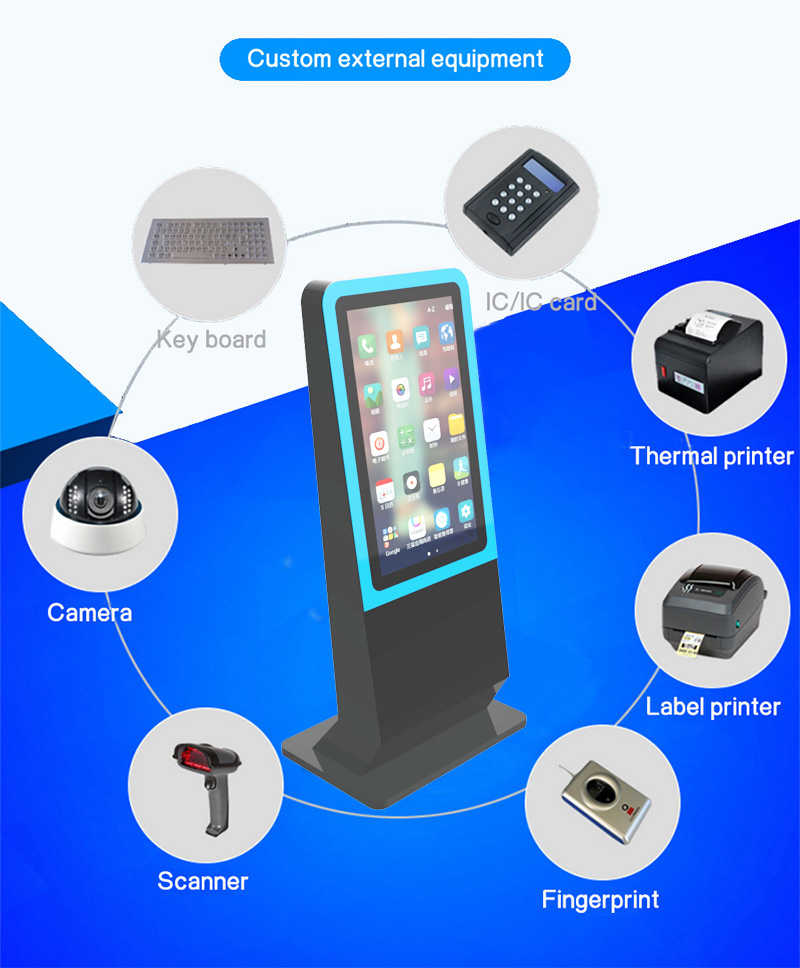

Optional Function
Description		Specification
touch screen		Infrared touch, the capacitive touch
printer		Thermal printer
camera		HD USB camera/Motion-sensing camera
card reader		IC，ID，RFID，NFC，Id card reader
Bar code scanner		bar-code scanner
Coin collector		coin machine，Paper money machine
