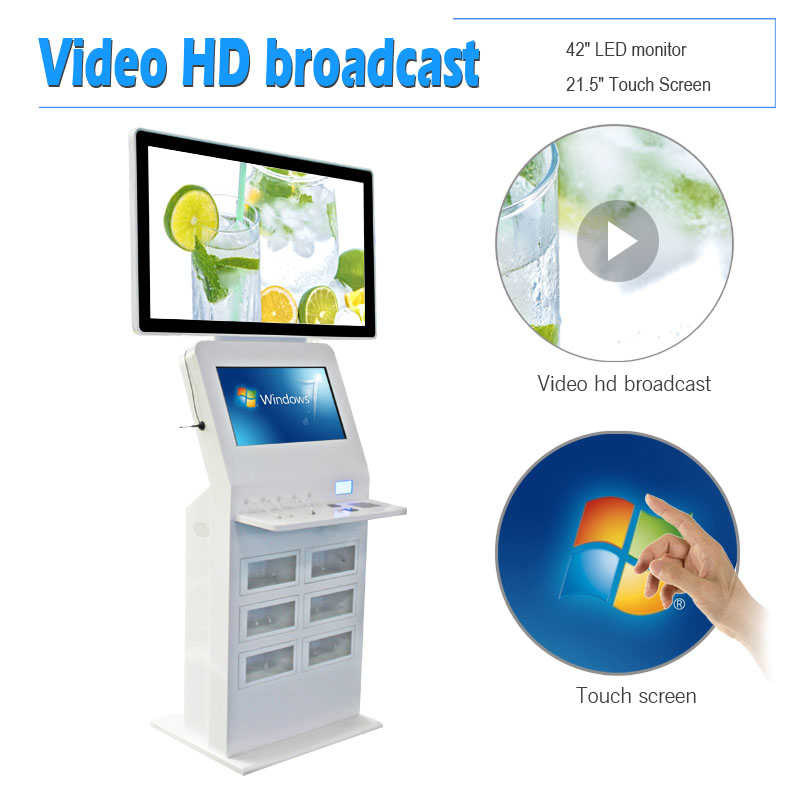

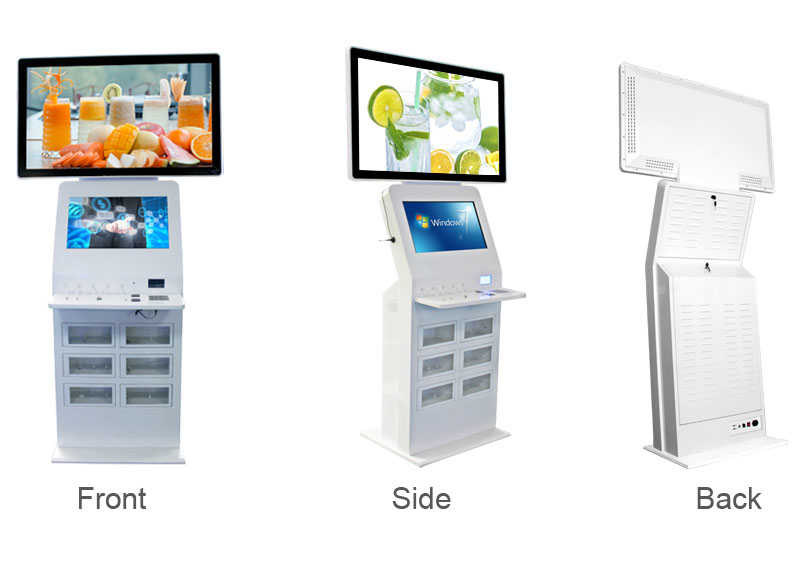

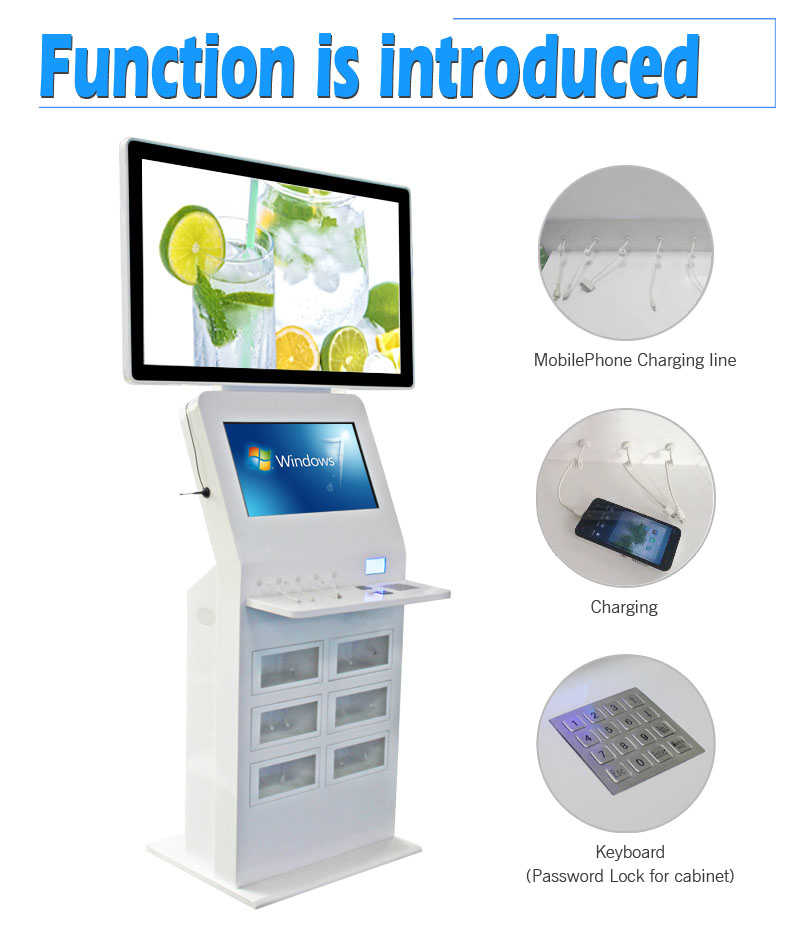

43＂HD LCD Digital Phone Charger Touch Kiosk

Product Type：V431YCL-D04
Brightness：360
Contrast：1200：1
Respectively Rate：1920*1080
43＂HD LCD Digital Phone Charger Touch Kiosk
Request a quote

◆Intelligent Terminal System Optional, Function Customization

◆ System to support a cloud platform management mode
◆ Support both Chinese and English etc kinds language version
◆ Open all series feature API development platform
◆ Terminal intelligent networking, exempted from registration
◆ System management side support self-built server system

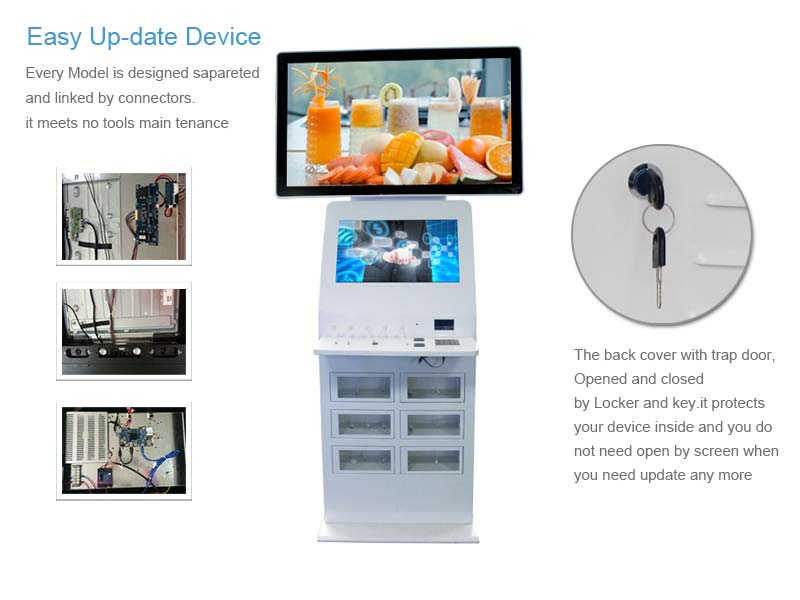

◆ Installation is convenient remote maintenance and management and unload
◆ Support for massive number of terminal, server can be a smooth upgrade
◆ increase the external device, such as touch screen, camera, printer and other intelligent integrated applications

◆ Support wired LAN, Internet, WIFI, extensible 3 G, 4 G networks

Category	Description	Specification
LCD Panel	Name Type	43'' HD LCD Self-Service Terminal Kiosk
	Model Number	V431YCL-D04
	Panel size	43''inch
	Display Area	941.184(H) × 529.416(V) mm
	Aspect Ratio	16 : 9
	LCD Type	TFT-LCD
	Max Resolution	1920 × 1080
	Display color	16.7M
	Brightness	300 cd/m²
	Contrast ratio
	Viewing angle (up/down/left/right)	89°/89°/89°/89°
	Response Time	8ms
	Field Frequency	50Hz、60Hz、70Hz
	Color system	PAL/NTSC/Auto Identification
	OSD Language	Chinese/English

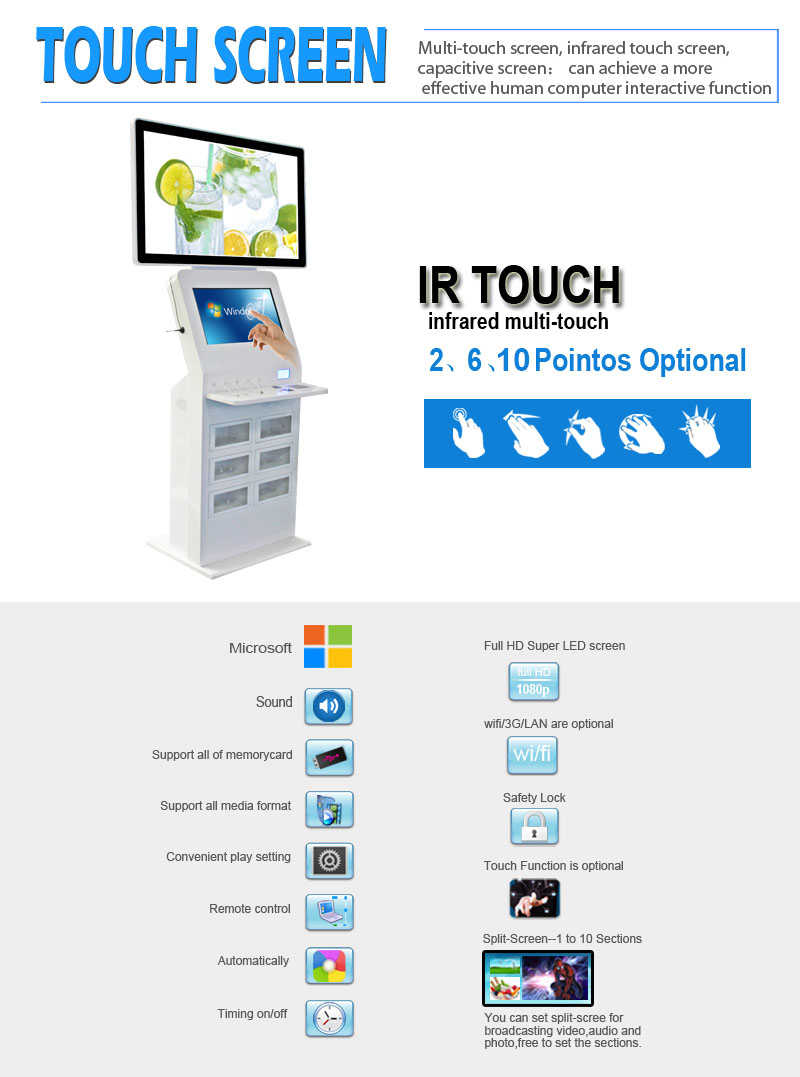

Touch screen parameter	Touch Style	Infrared Touch
	Touch Resolution	4096*4096
	Touch points	10 points
	The glass transmittance	>88%（Higher transmittance depends on the glass surface treatment technology, eg.AR/AG）/>88%
	Response speed	<15ms
	Accuracy of touch	More than 90% of the touch area ±2mm
	Touch ways	Fingers, touch pen and other opaque objects
	Output format	The coordinate output
	Clicks time	Unlimited
	The smallest touch size	5mm
	Light resistance	Yes available
	Touch Interfaces	USB
	Operating temperature &Humidity	-10℃ ~ +50℃，≤85%RH
	Storage temperature &Humidity	-20℃ ~ +60℃，≤90%RH
Computer configuration	CPU	I3
	DDR	4G DDR3
	HDD	500G
	WIFI	Optional
	Computer Power	19V Power Adapter
Power	Audio system	Built-in 8 Ω 10 w * 2 speakers
	Power	AC100V～240V，50/60Hz
	The maximum power loss	≦105W
	Standby power loss	＜1W
Environment	Operating temperature	0℃~50℃
Environment	Storage temperature	-20℃~60℃

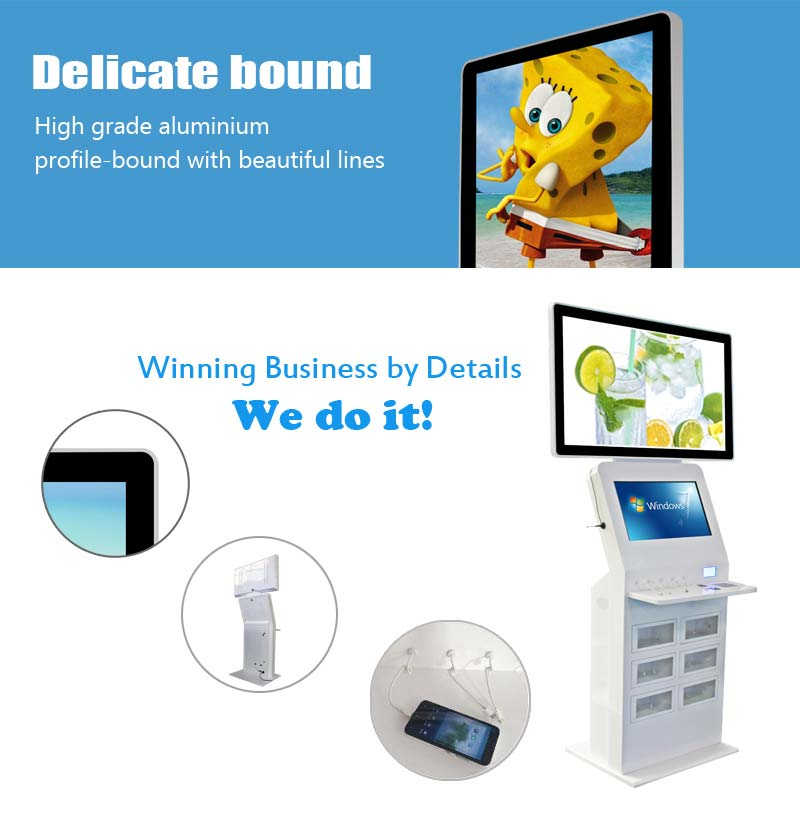

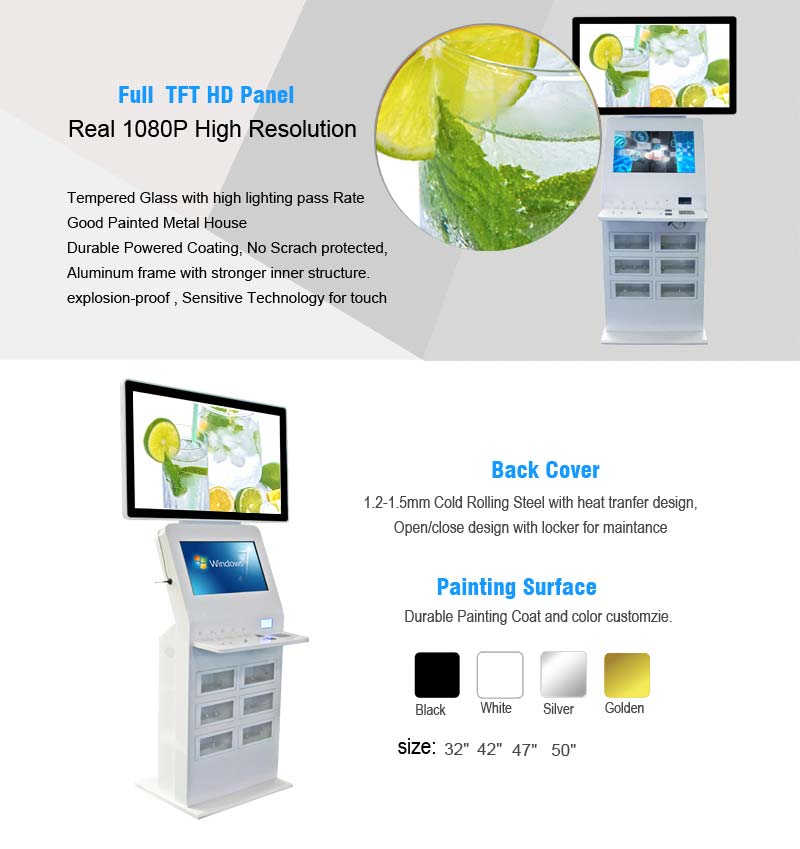

Instructions	Frame material	Metal case
	Installation type	Floor standing
	Range of application	Indoor
